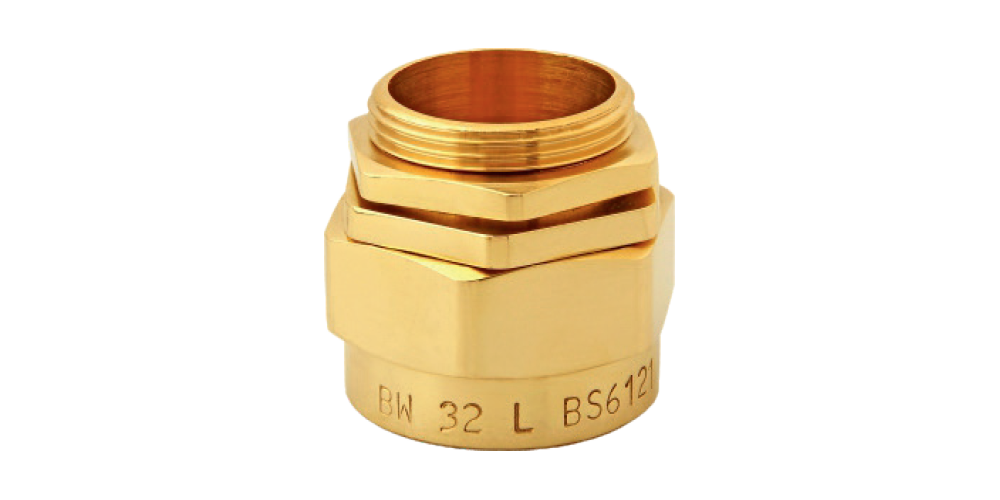

INDUSTRIAL CABLE GLAND & ACCESSORIES

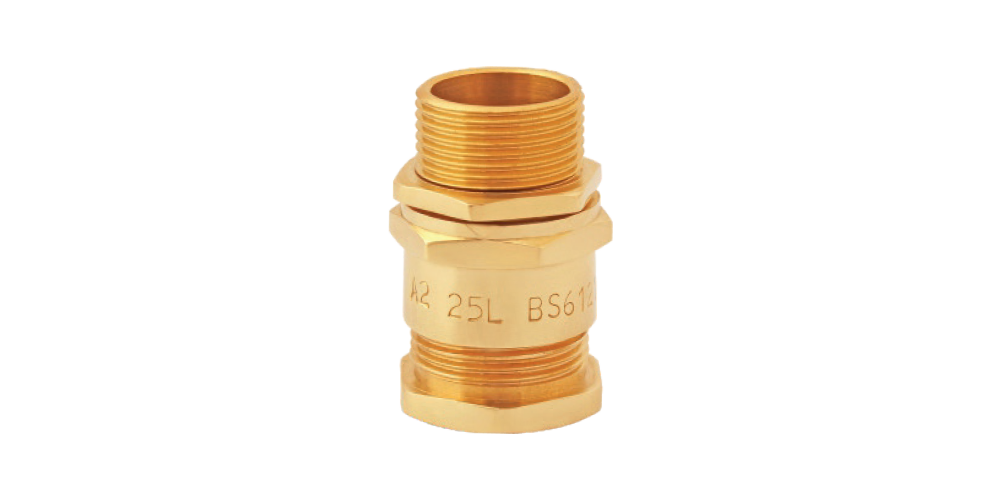

Size : 20mmto 90mm
Standard: BS 6121: Part-1:2005, EN 50262:1999, IEC62444:2010
Function : Provides mechanical cable retention & electrical continuity via armoured wire termination in indoor area.
Ingress Protection : IP2X
Material : Brass CW614N
Thread : Metric, NPT, BSP
Finish : Brass, Nickel
Operating Temp. : -60°C to + 200°C
Cable Type : Single Wire Armour (SWA) Cable
Features : Armoured Ring

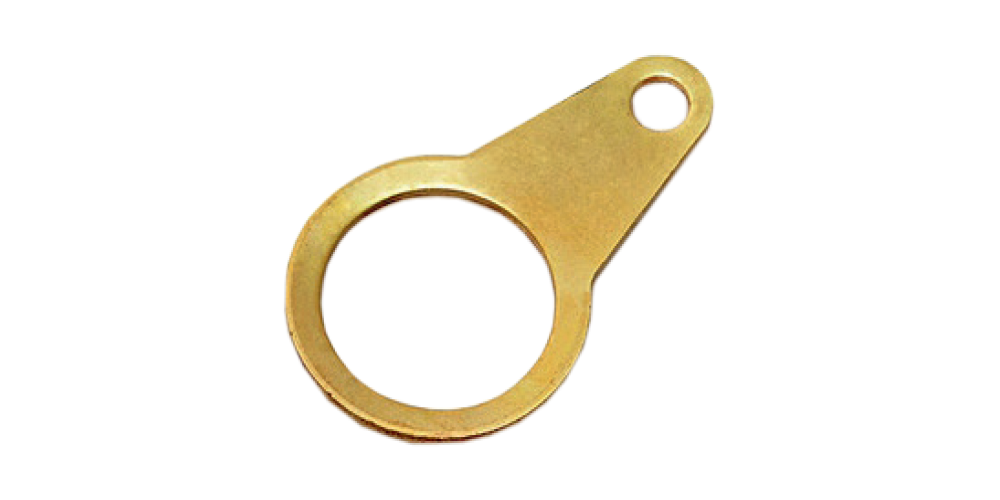

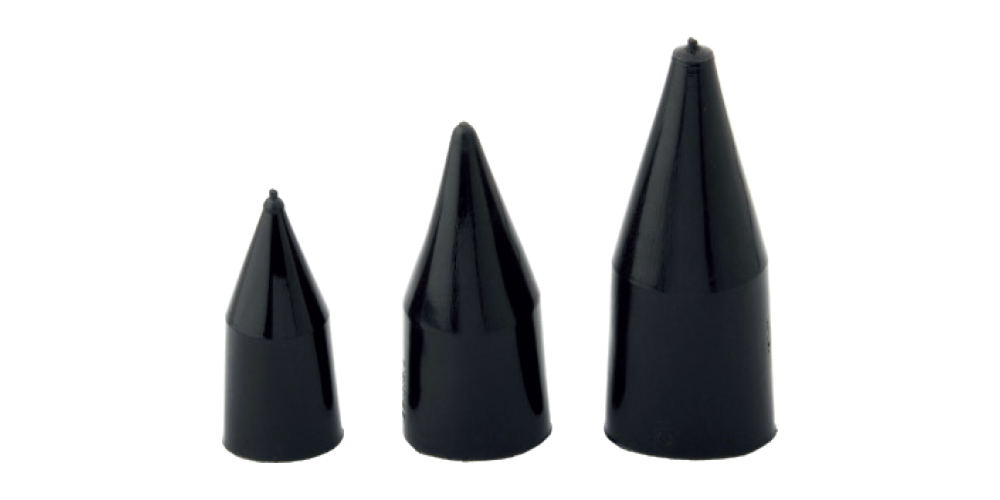

Accessories : PVC Shroud, Earth Tag

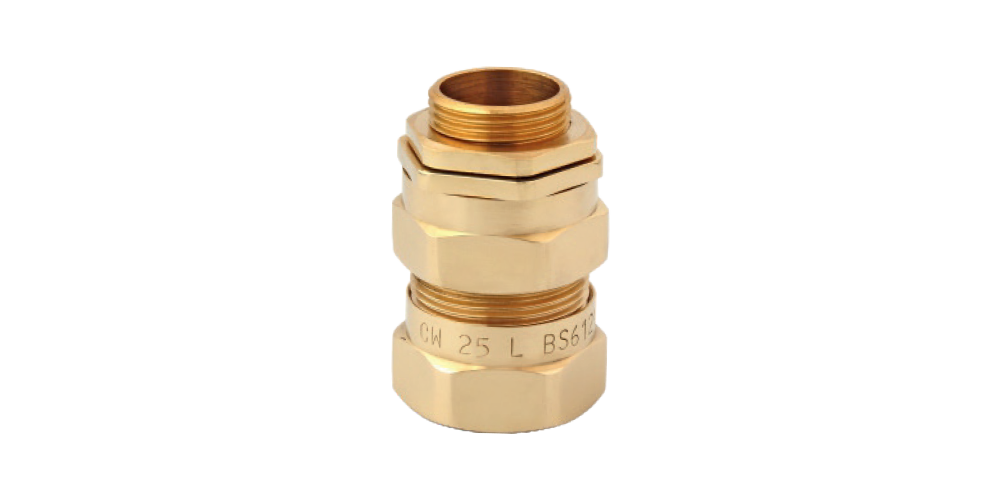

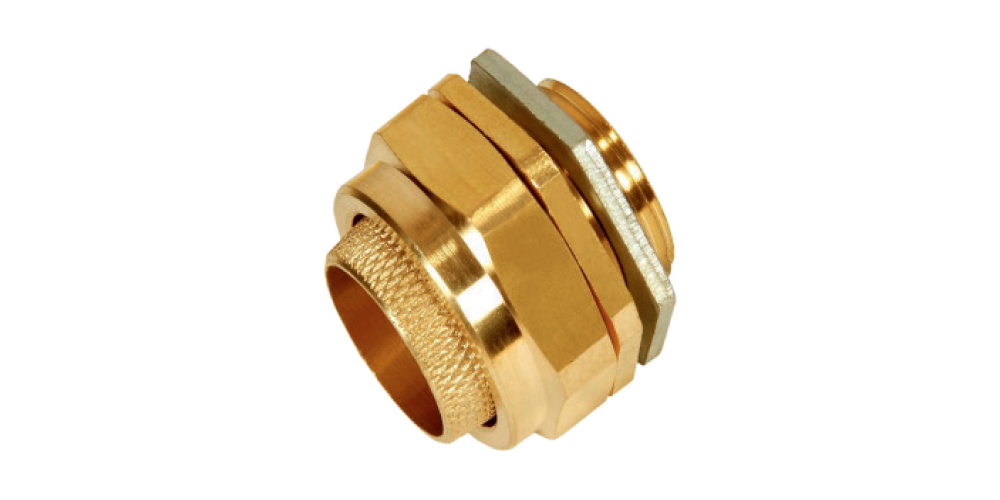

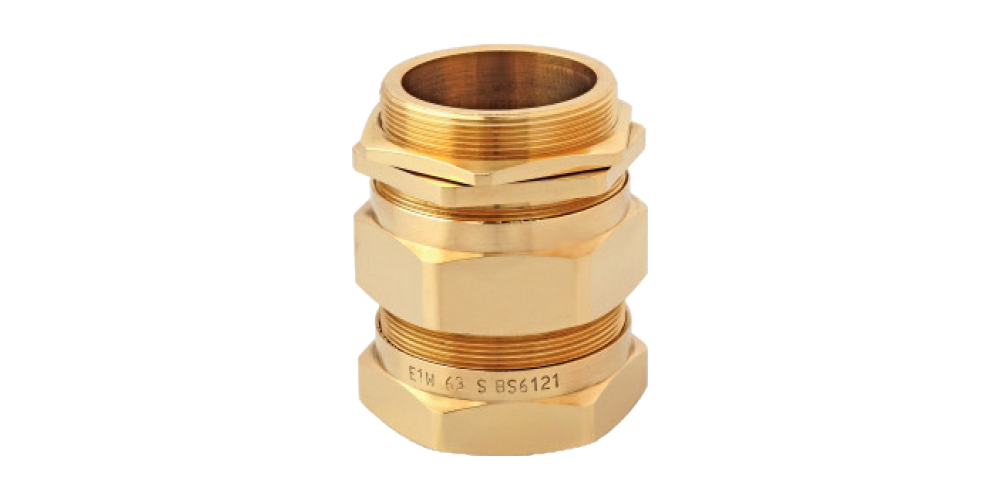

Size : 20mmto 90mm
Standard: BS 6121: Part-1:2005, EN 50262:1999, IEC62444:2010
Function : Provides mechanical cable retention & electrical continuity via armoured wire termination in indoor area. It is easy to install.
Ingress Protection : IP2X
Material : Brass CW614N
Thread : Metric, NPT, BSP
Finish : Brass, Nickel
Operating Temp. : -60°C to + 200°C
Cable Type : Single Wire Armour (SWA) Cable
Features : Two Part Armour Lock

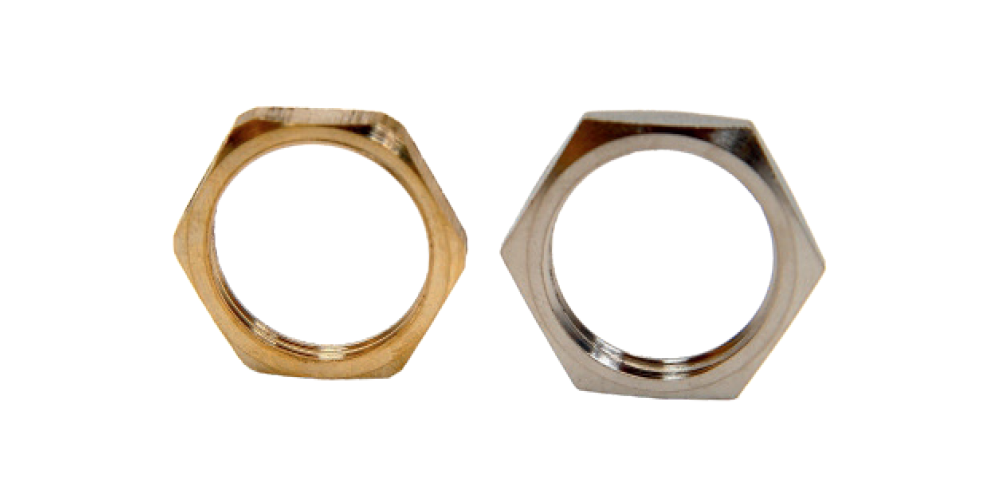

Accessories : PVC Shroud, Earth Tag, Galvanized Steel Lock Nut
Size : 16mm to 90mm
Standard: BS 6121: Part-1:2005, EN 50262:1999, IEC62444:2010
Function : Providing environmental seal on the cable outer sheath. Also provides mechanical cable retention & electrical continuity via armoured wire termination in indoor and outdoor area with all types of SWA cable.
Ingress Protection : IP66
Material : Brass CW614N, Stainless Steel 316L
Thread : Metric, NPT
Finish : Brass, Nickel
Operating Temp. : -20°C to + 80°C
Cable Type : Single Wire Armour (SWA) Cable
Seal Material: Neoprene
Features : Armoured Ring and Outer Compression Seal

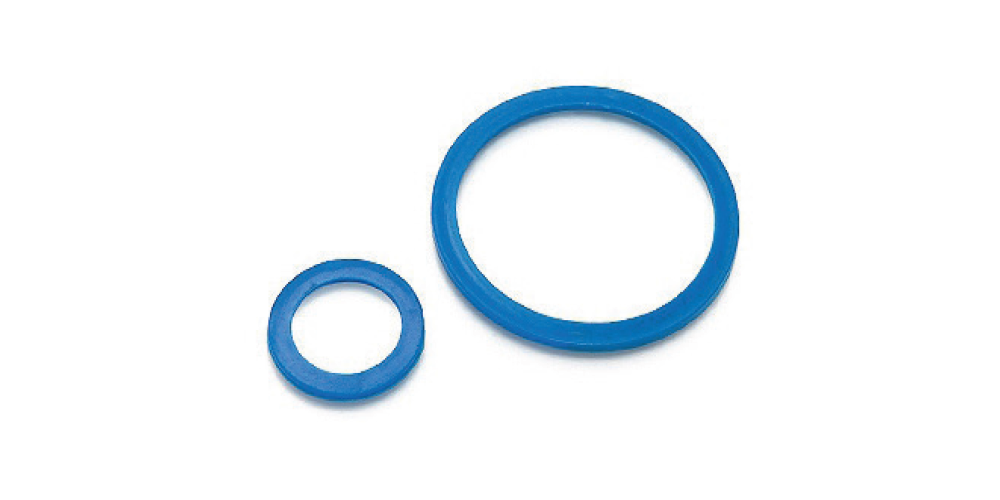

Accessories : PVC Shroud, Earth Tag, Serrated Washer and Entry Thread Seal
Size : 16mm to 90mm
Standard: BS 6121: Part-1:2005, EN 50262:1999, IEC62444:2010
Function : Providing environmental seal on the cable outer sheath. Also provides mechanical cable retention & electrical continuity via armoured wire termination in indoor and outdoor area with all types of SWA cable.
Ingress Protection : IP66
Material : Brass CW614N, Stainless Steel 316L
Thread : Metric, NPT
Finish : Brass, Nickel
Operating Temp. : -20°C to + 80°C
Cable Type : Single Wire Armour (SWA) Cable
Seal Material: Neoprene
Features : Armoured Ring and Outer Compression Seal
Accessories : PVC Shroud, Earth Tag, Serrated Washer and Entry Thread Seal
Size : G204 to G755
Standard: BS 6121: Part-1:2005, EN 50262:1999, IEC62444:2010
Function : Provides mechanical cable retention & electrical continuity via armoured wire termination in dry indoor area for all types of SWA cables.
Ingress Protection : IP2X
Material : Brass CW614N, Stainless Steel 316L
Thread : Metric
Operating Temp. : -60°C to + 200°C
Cable Type : Single Wire Armour (SWA) Cable
Features : Armoured Ring
Accessories : PVC Shroud and Earth Tag
Size : 16mm to 115mm
Standard: BS 6121: Part-1:2005, EN 50262:1999, IEC62444:2010
Application : For indoor & outdoor use with all types of SWA cable providing environmental seal on both the cable inner & outer sheaths. Also provides mechanical retention & electrical continuity via armour wire termination.
Ingress Protection : IP66
Material : Brass CW614N, Nickel Plated Brass, Stainless Steel 316L
Thread : Metric, NPT
Operating Temp. : -60°C to +125°C
Cable Type : Single Wire Armour (SWA) Cable
Features : Displacement Seal and Two part Armour Lock
Seal Material : LSOH Silicone Seal & LSOH Nylon Washer
Accessories : PVC Shroud, Earth Tag, Serrated Washer, Entry Thread Seal, Adaptor and Reducer

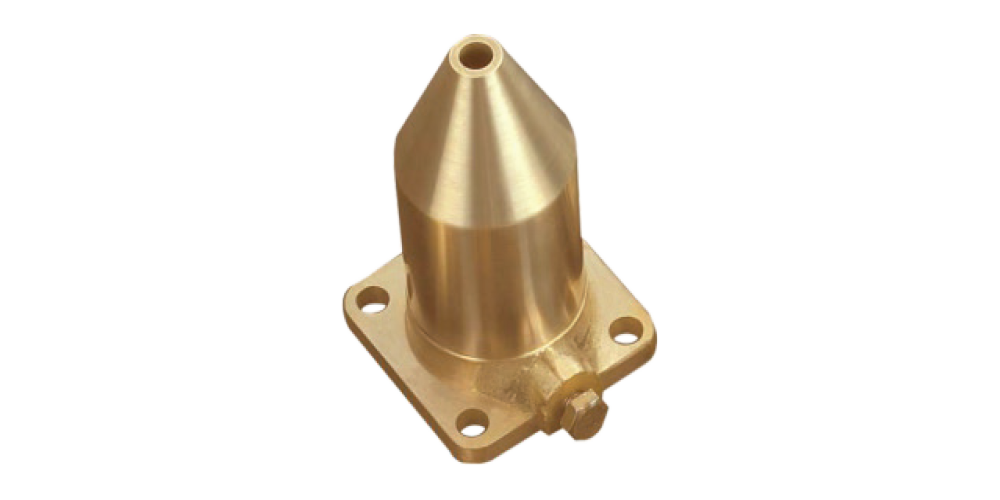

Size : X, Y and Z
Material: Brass BS 2874
Application : For use with SWA plastic and rubber (Elastomer) sheathed cables. Used in dry indoor conditions
Accessories : Hot Dip Galvanized Mild Steel Clamp, Neoprene Gasket.

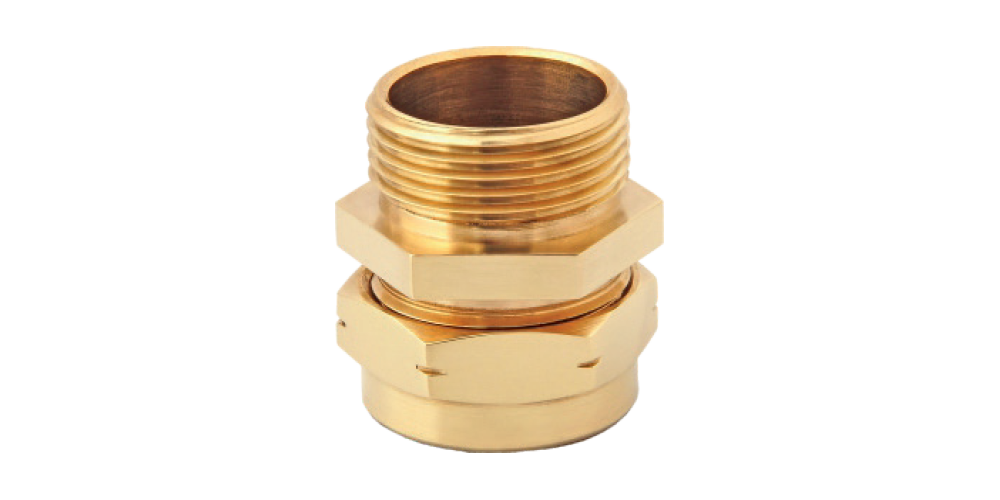

Size : 16mmto 50mm
Standard : BS 6121: Part-1:2005, EN 50262:1999, IEC62444:2010
Function : Recommended for use with braided, co-axial or SWA cables. A rubber seal compresses on cable to provide a tight fit against cable.
Ingress Protection: IP66
Material : Brass CW614N
Thread : Metric
Features : Outer Compression Seal
Accessories : PVC Shroud, Earth Tag and Serrated Washer

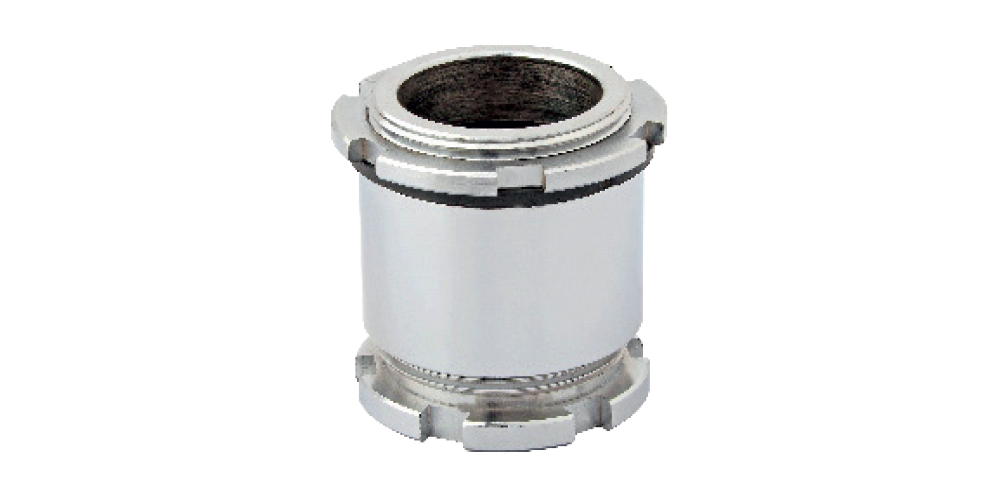

Size : M10 to M75
Material : Brass, Chromium Plated
Gland Type : JIS Standard-8802/8803/F8801
Entry Thread : BSP
Ingress Protection : IP66
Application : For use all types of unarmoured cable

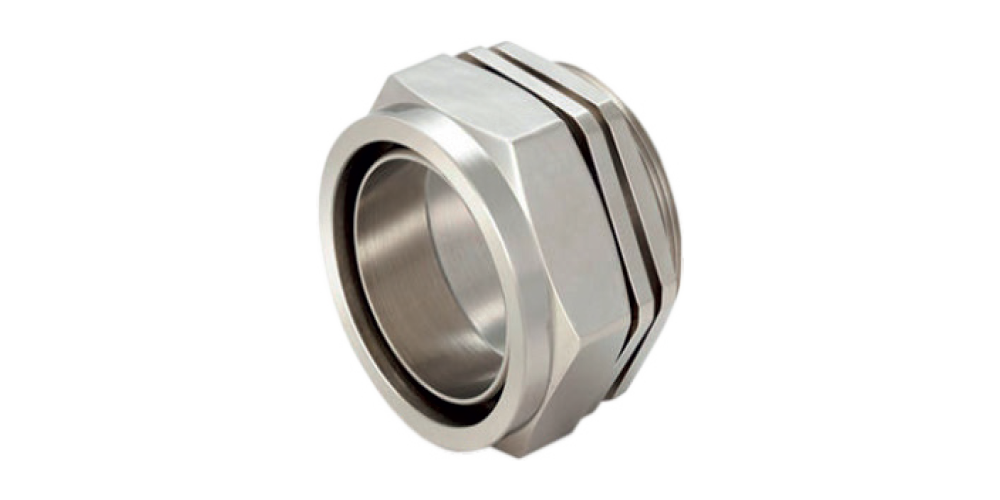

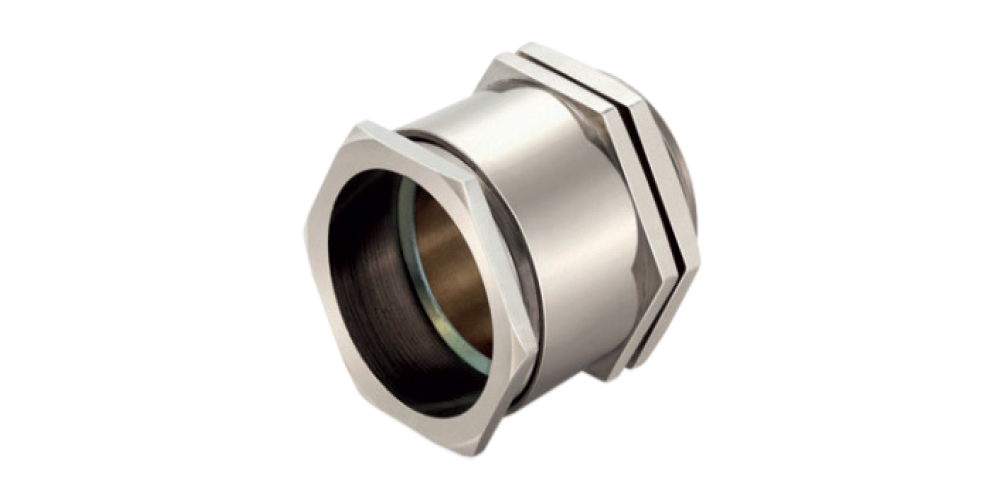

Size : 16mmto 115mm and 3/8 to 4″
Standard: : BS 6121:Part-1:2005, EN 50262: 1999
Function : Providing seal on outer sheaths of unarmored cable in indoor and outdoor area.
Ingress Protection : IP65
Material : Brass BS 2874
Thread : Metric and BSC (ET)
Operating Temp. : -20°C to + 80°C
Features : Outer Compression seal
Accessories : Shroud, Earth Tag, Lock Nut and Serrated Washer.

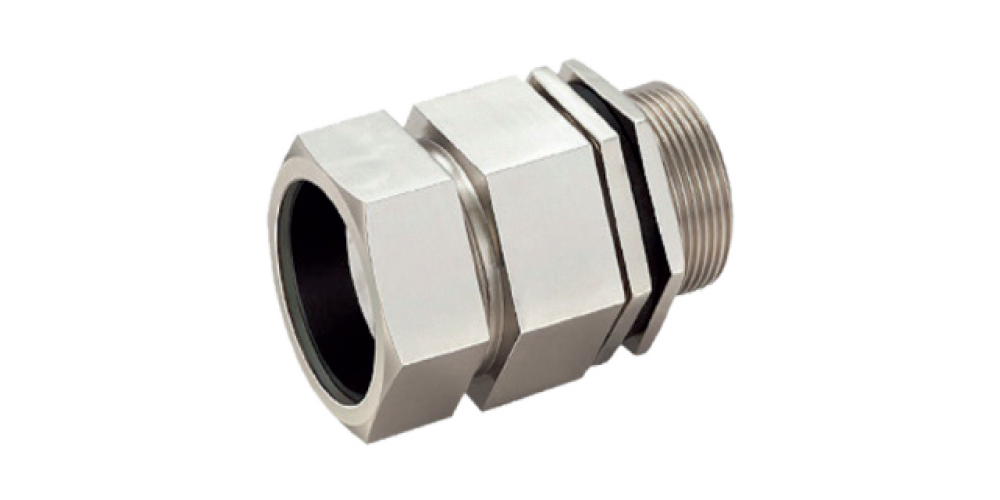

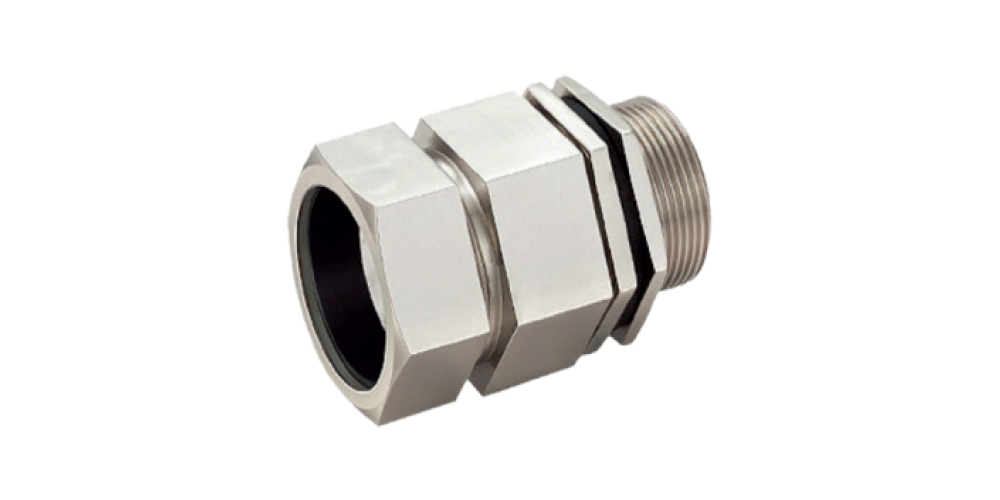

Size : : 16mm to 115mm & ½” to 3½”
Standard: : BS 6121:Part-1:2005, EN 50262: 1999
Function : For indoor & outdoor use with all types of SWA cable providing environmental seal on both the cable inner & outer sheaths. Also provides mechanical retention & electrical continuity via armour wire termination.
Ingress Protection : IP66
Material : Brass BS 2874
Thread : Metric, BSC (ET)
Operating Temp. : -20°C to +80°C
Cable type : Steel Wire (SWA) Cable
Features : Displacement seal and Universal anyway clamping ring
Accessories : Shroud, Earth Tag, Serrated washer, Lock nut and Entry Thread Seal.
