Copper Cable Lugs & Connectors

Copper One Hole Short

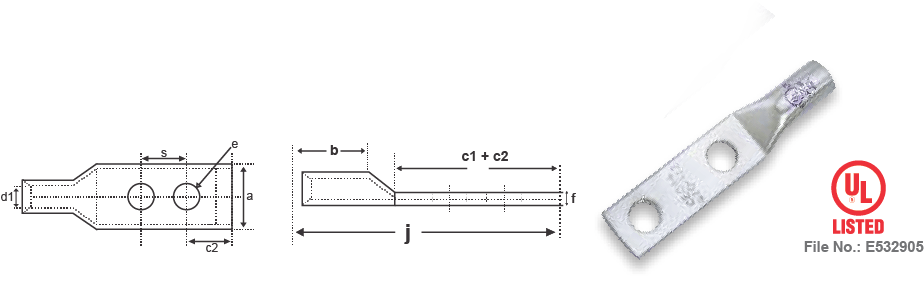

Copper Two Hole Short

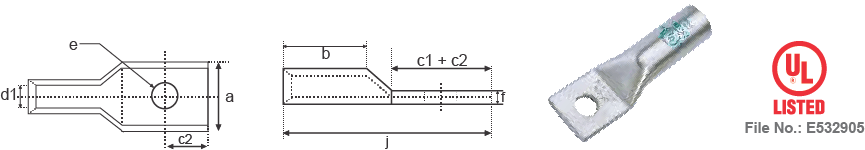

Copper Single Hole Long

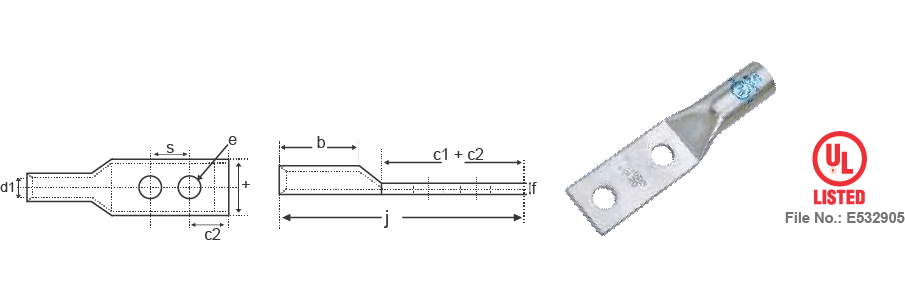

Copper Two Hole Long

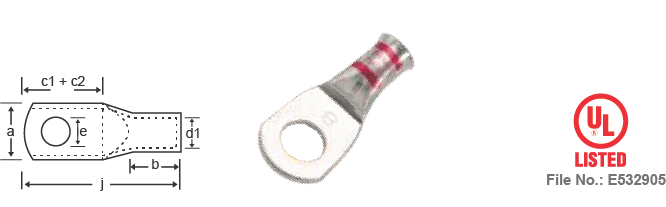

Copper Single Hole Terminal Heavy Duty

Copper Single Hole Heavy Duty

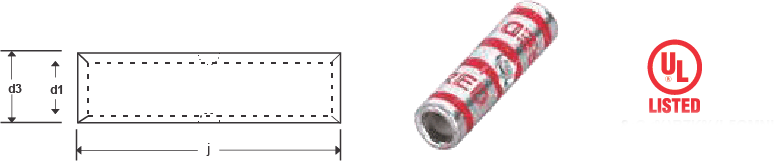

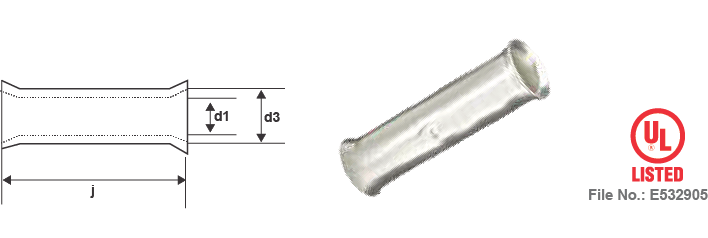

Copper Butt Splices (SHORT & LONG)

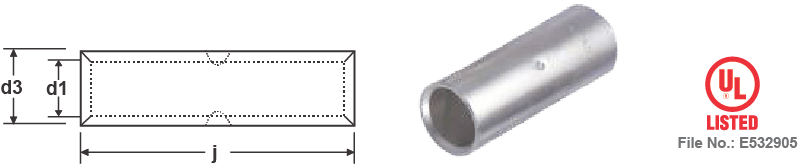

Copper Butt Splice Connector

Copper in Line Connector-Flared

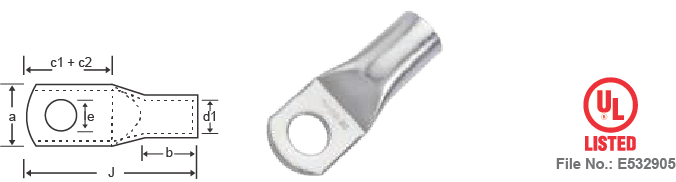

Copper Single Hole Standard

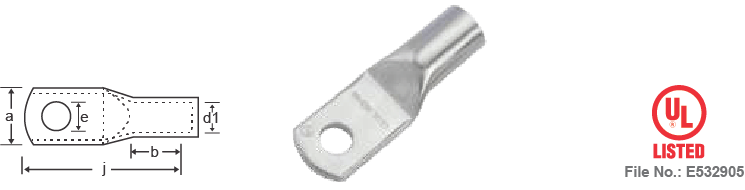

Copper Single Hole Long Barrel Series

Copper Short and Standard Butt Splices

CAT NO.	Wire Range	Stud Size	Colour Code	d1	d3	J	b	a	F	E	c2	c1 + c2	K	TOOL & DIE REFERENCE	NO. OF CRIMPS	STRIP LENGTH
L 001	8	#10	RED	4.4	6.9	30.5	12.5	10.7	2	5.3	7	15	3	M=MH-14	2	10mm
L 002	8	1/4	RED							6.4
L 003	6	#10	BLUE	5.2	7.5	38	18			5.3	7.5	17	3	M=MH-14		16mm
L 004	6	1/4	BLUE					10.7	2.1	6.4					2
L 005	6	5/16	BLUE					12.4	1.7	8.4
L 006	4	#10	GREY	6.4	8.7					5.3				I=ECO50 DIE.UL087
L 008	4	1/4	GREY							6.4
L 009	4	5/16	GREY			38	18	12.4	2	8.4	8	17	3		2	16mm
L 010	4	3/8	GREY			38	18	14.2	1.8	10.5	8	17	3			16mm
L 010A	4	3/16	GREY			38	18	12.4	2.2	5	8	17	3			16mm
L 011	2	1/4	BROWN	8	10.7	45.6	21	15.3	2.6	6.4	9.4	20.6	4	I=ECO50 DIE.UL107		19mm
L 012	2	5/16	BROWN							8.4					1
L 013	2	3/8	BROWN							10.5
L 014	1	1/4	GREEN	9.1	11.9	46.6	21	17.1	2.7	6.4		20.6	5	I=ECO50 DIE.UL119		19mm
L 015	1	5/16	GREEN							8.4	9.4				1
L 016	1	3/8	GREEN							10.5	10
L 017	1/0	1/4	PINK	9.9	13.2	46.6	21	18.9	3.2	6.4	9.4	20.6	5	I=ECO50 DIE.UL132		19mm
L 018	1/0	5/16	PINK							8.4
L 019	1/0	3/8	PINK							10.5					1
L 019A	1/0	1/2	PINK							13
L 019AR	1/0	3/8	PINK			52.5	23.5	19.05	3.18	11	10.3	23	6			20mm
L 020	2/0	1/4	BLACK	11.2	14.3	57	24	20.7	3	6.4	12	27	6	I=ECO50 DIE.UL143		21mm
L 021	2/0	5/16	BLACK							8.4					1
L 022	2/0	3/8	BLACK							10.5
L 023	2/0	1/2	BLACK							13
L 024	3/0	1/4	ORANGE	12.5	15.8	60	25	22.9	3.2	6.4	12	27	8	I=ECO50 DIE.UL158		21mm
L 025	3/0	5/16	ORANGE							8.4
L 026	3/0	3/8	ORANGE							10.5					1
L 027	3/0	1/2	ORANGE							13
L 027R	3/0	1/2	ORANGE			63.5	26.5	23	3.18	13	13.5	29				22mm
L 027AR	3/0	3/8	ORANGE			57	26	23	3.18	10.5	10.3	23				22mm
L 028	4/0	1/4	PURPLE	13.9	17.5	60	25	25.4	3.4	6.4	12	27	8	I=ECO50 DIE.UL175		21mm
L 029	4/0	5/16	PURPLE							8.4					1
L 030	4/0	3/8	PURPLE							10.5
L 031	4/0	1/2	PURPLE							13
L 032	250	3/8	YELLOW	15.1	19.1	63	27	27.7	3.8	10.5	12	27	9	I=ECO50 DIE.UL191	2	25mm
L 033	250	1/2	YELLOW							13
L 034	300	1/2	WHITE	16.7	20.7	63	27	30.2	3.8	13	13.2	27	9	I=ECO50 DIE.UL207	2	25mm
L 035	300	5/8	WHITE			71	27	30.2	3.8	17	13.2	35	9			25mm
L 036	350	1/2	RED	17.8	22.2	66	28	32.4	4.2	13	13.2	27	11	I=REC-5510 DIE.UL222	2	26mm
L 037	350	5/8	RED			74	28	32.4	4.2	17	13.2	35				26mm
L 038	400	1/2	BLUE	19.4	24.1	78.2	30	35.2	4.5	13	13.2	35	13	I=REC-5510 DIE.UL241	2	28mm
L 039	400	5/8	BLUE							17
L 040	500	1/2	BROWN	21.2	27	83.2	35	39.1	5.5	13	13.2	35	13	I=REC-5510 DIE.UL270	2	32mm
L 041	500	5/8	BROWN							17	13.2
L 042	600	5/8	GREEN	23.5	30.2	89	38	43.6	6.4	17	17.5	37	14	I=REC-5510 DIE.UL302	2	35mm
L 042A	600	1/2	GREEN	23.5	30.2	87	38	43.6	6.4	13	13.2	37	14		3	35mm
L 042AR	600	5/8	GREEN	23.5	30.2	101	35	43.7	6.75	17	22.2	45	21			35mm
L 042BR	600	1/2	GREEN	23.5	30.2	101	35	43.7	6.75	13	22.2	45	21			35mm
L 043	750	5/8	BLACK	26.2	33.3	111	47	48.3	6.8	17	17.5	47	17	I=REC-5510 DIE.UL333	3	44mm

Edit Template

CAT NO.	Wire Range	Stud Size	Hole Spacing	Colour Code	d1	j	b	a	f	e	c2	c1 + c2	s	TOOL & DIE REFERENCE	NO. OF CRIMPS	STRIP LENGTH
L 044	8	10	5/8	RED	4.4	46.2	11.2	10.7	2	5.3	7.1	32	15.9	M=MH14	2	10mm
L 045	6	1/4	5/8	BLUE	5.2	53	18	10.7	2.1	6.4	7.1	32	15.9
L 045A	6	1/4	1	BLUE	5.2	67	18	10.7	2.1	6.4	7.1	46	25.4	M=MH14	2	16mm
L 045B	6	3/8	1	BLUE	5.2	67	18	12.4	2.2	10.5	9.7	46	25.4
L 046	4	1/4	5/8	GREY	6.4	53	18	12.4	2.2	6.4	7.1	32	15.9
L 046A	4	1/4	1	GREY	6.4	68	19	12.4	2.2	6.4	7.1	46	25.4	M=MH14	2	17mm
L 046B	4	3/8	1	GREY	6.4	68	19	12.4	2.2	10.5	9.7	46	25.4
L 047	2	5/16	3/4	BROWN	8	66.6	21	15.3	2.6	8.4	8.1	41	19.1
L 047A	2	1/4	5/8	BROWN	8	58	21	15.3	2.6	6.4	7.1	32	15.9
L 047B	2	3/8	1	BROWN	8	72	21	15.3	2.6	10.5	7.1	46	25.4	I=ECO50 DIE.UL107	1	19mm
L 047C	2	1/4	3/4	BROWN	8	60	21	15.3	2.6	6.4	7.1	35	19.1
L 047D	2	1/4	1	BROWN	8	71	21	15.3	2.6	6.4	7.1	46	25.4
L 048	1	1/4	5/8	GREEN	9.1	58	21	17.1	2.7	6.4	7.1	32	15.9	I=ECO50 DIE.UL119	1	19mm
L 049	1/0	5/16	7/8	PINK	9.9	67.1	21	18.9	3.2	8.1	8.1	41	22.2
L 050	1/0	3/8	1	PINK	9.9	72	21	18.9	3.2	10.5	9.7	46	25.4	I=ECO50 DIE.UL132	1	19mm
L 051	2/0	3/8	1	BLACK	11.2	76	24	20.7	3	10.5	9.7	46	25.4	I=ECO50 DIE.UL143	1	22mm
L 052	2/0	1/2	1 3/4	BLACK	11.2	106	24	20.7	3	13	15.7	76	44.5
L 053	3/0	1/2	1 3/4	ORANGE	12.5	109	25	22.9	3.2	13	15.7	76	44.5	I=ECO50 DIE.UL158	2	23mm
L 053A	3/0	3/8	1	ORANGE	12.5	75	25	22.9	3.2	10.5	9.7	46	25.4
L 054	4/0	1/2	1 3/4	PURPLE	13.9	109	25	25.4	3.4	13	15.7	76	44.5	I=ECO50 DIE.UL175	2	23mm
L 055	4/0	3/8	1	PURPLE	13.9	79	25	25.4	3.4	10.5	9.7	46	25.4
L 056	250	1/2	1 3/4	YELLOW	15.1	112	27	27.7	3.8	13	15.7	76	44.5	I=REC-5510 DIE.UL190	2	25mm
L 056A	250	3/8	1	YELLOW	15.1	82	27	27.7	3.8	10.5	9.7	46	25.4
L 057	300	1/2	1 3/4	WHITE	16.7	112	27	30.2	3.8	13	15.7	76	44.5	I=REC-5510 DIE.UL207	2	25mm
L 058	350	1/2	1 3/4	RED	17.8	115	28	32.4	4.2	13	15.7	76	44.5	I=REC-5510 DIE.UL222	2	26mm
L 058A	350	3/8	1	RED	17.8	85	28	32.4	4.2	10.5	9.7	46	25.4
L 059	400	1/2	1 3/4	BLUE	19.4	119	30	35.2	4.5	13	15.7	76	44.5	I=REC-5510 DIE.UL241	2	28mm
L 059R	400	1/2	1 3/4	BLUE		122		35.7	4.7	13	15.7	73	44.5
L 060	500	1/2	1 3/4	BROWN	21.3	124	35	39.1	5.5	13	15.7	76	44.5	I=REC-5510 DIE.UL270	2	33mm
L 060A	500	3/8	1	BROWN	21.3	94	35	39.1	5.5	10.5	9.7	46	25.4
L 061	600	3/8	1 3/4	GREEN	23.5	126	38	43.6	6.4	13	15.7	76	44.5			36mm
L 062	600	1/2	1 3/4	GREEN	23.5	128	38	43.6	6.4	13	15.7	76	44.5			36mm
L 062R	600	1/2	1 3/4	GREEN	23.5	129	35	43.7	6.75	13	13.5	73	44.5	I=REC5510 DIE.UL300	2	33mm
L 062AR	600	3/8	1 3/4	GREEN	23.5	104	36	43.7	6.75	10.5	9.7	47	25.4			34mm
L 062BR	650	1/2	1 3/4	PINK	24.75	129	35	45.2	6.75	13	13.5	73	44.5	I=REC-5510 DIE.UL315		34mm
L 063	750	1/2	1 3/4	BLACK	26.5	140	47	48.3	6.8	13	15.7	76	44.5	I=REC-5510 DIE.UL333	2	45mm

Edit Template

CAT NO.	Wire Range	Stud Size	Colour Code	d1	j	b	a	f	e	c2	c1 + c2	NO. OF CRIMPS	STRIP LENGTH
L 064	8	1/4	RED	4.4	38.5	20.5	10.7	2	6.4	7	15	2	18mm
L 065	6	1/4	BLUE	5.2	45	25	10.7	2.1	6.4	7.5	17	2	22mm
L 065A	6	3/8	BLUE		48.6	25	15	2.1	10.5	9.4	20.6		22mm
L 065B	6	5/16	BLUE										22mm
L 065C	6	10	BLUE		45	25	10.7	2.1	5.3	7.5	17		22mm
L 066	4	1/4	GREY	6.4	45	25	12.4	2.2	6.4	8	17	2	22mm
L 066A	4	3/8	GREY		48.6	25	15	2.2	10.5	9.4	20.6		22mm
L 066B	4	5/16	GREY		45	25	12.4	2.2	8.4	8	17		22mm
L 066C	4	10	GREY		45	25	12.4	2.2	5.3	8	17		22mm
L 067	2	5/16	BROWN	8	52.6	28	15.3	2.6	8.4	9.4	20.6	2	26mm
L 067A	2	3/8	BROWN	8	52.6	28	15.3	2.6	10.5	9.4	20.6		26mm
L 067B	2	1/4	BROWN	8	52.6	28	15.3	2.6	6.4	9.4	20.6		26mm
L 068	1	5/16	GREEN	9.1	53.6	28	17.1	2.7	8.4	9.4	20.6	2	26mm
L 068A	1	3/8	GREEN	9.1	53.6	28	17.1	2.7	10.5	9.4	20.6		26mm
L 069	1/0	5/16	PINK	9.9	56.1	30.5	18.9	3.2	8.4	9.4	20.6	2	28mm
L 070	1/0	3/8	PINK						10.5
L 070A	1/0	1/2	PINK		63.5	30.5	18.9	3.2	13	12	27		28mm
L 071	2/0	3/8	BLACK	11.2	68	35	20.7	3	10.5	12	27	2	32mm
L 071A	2/0	1/2	BLACK		68	35	20.7	3	13	12	27		32mm
L 072	3/0	1/2	ORANGE	12.5	71	35	22.9	3.2	13	12	27	2	32mm
L 072A	3/0	3/8	ORANGE	12.5	71	35	22.9	3.2	10.5	12	27		32mm
L 073	4/0	1/2	PURPLE	13.9	71	36	25.4	3.4	13	13.2	27	2	32mm
L 073A	4/0	3/8	PURPLE		71	36	25.4	3.4	10.5	13.2	27		32mm
L 074	250	1/2	YELLOW	15.1	77	41	27.7	3.8	13	13.2	27	2	38mm
L 074A	250	3/8	YELLOW	15.1	77	41	27.7	3.8	10.5	13.2	27		38mm
L 075	300	1/2	WHITE	16.7	86	50	30.2	3.8	13	13.2	27	3	47mm
L 076	350	1/2	RED	17.8	88	50	32.4	4.2	13	13.2	27	3	47mm
L 076A	350	5/8	RED		88	50	32.4	4.2	17	13	27		47mm
L 077	400	1/2	BLUE	19.4	98	50	35.2	4.5	13	13	35	4	47mm
L 078	400	5/8	BLUE						17
L 079	500	1/2	BROWN	21.2	105	57	39.1	5.5	13	13	35	4	55mm
L 080	500	5/8	BROWN						17
L 081	600	5/8	GREEN	23.5	108	57	43.6	6.4	17	17.5	37	4	55mm
L 082	750	5/8	BLACK	26.2	131	67	48.3	6.8	17	17.5	47	4	65mm

Edit Template

CAT NO.	WIRE RANGE	STUD SIZE	HOLE SPACING	COLOUR CODE	d1	j	b	a	f	e	c2	c1 + c2	s	TOOL & DIE REFERENCE	NO. OF CRIMPS	STRIP LENGTH
L 083	8	10	5/8	RED	4.4	55.5	20.5	10.7	2	5.3	7.1	32	15.9	M=MH14	2	18mm
L 084	8	1/4	5/8	RED	4.4	55.5	20.5	10.7	2	6.4	7.1	32	15.9			18mm
L 085	6	1/4	5/8	BLUE	5.2	60	25	10.7	2.1	6.4	7.1	32	15.9	M=MH14	2	22mm
L 085A	6	1/4	1/2	BLUE	5.2	57	25	10.7	2.1	6.4	7.1	29	12.7			22mm
L 085B	6	1/2	1 3/4	BLUE	5.2	104	25	22.2	3	13	15.7	76	44.5			22mm
L 085C	6	1/4	3/4	BLUE	5.2	63	25	10.7	2.1	6.4	7.1	35	19.1			22mm
L 085D	6	3/8	1	BLUE	5.2	74	25	10.7	2.1	10.5	9.7	46	25.4			22mm
L 086	4	1/4	5/8	GREY	6.4	60	25	12.4	2.2	6.4	7.1	32	15.9	M=MH14	2	22mm
L 086A	4	3/8	1	GREY	6.4	75	25	10.7	2.2	10.5	9.7	46	25.4			22mm
L 086B	4	1/4	3/4	GREY	6.4	64	25	12.4	2.2	6.4	7.1	35	19.1			22mm
L 087	4	1/2	1 34	GREY	6.4	104	25	22	3	13	15.7	76	44.5			22mm
L 088	2	5/16	3/4	BROWN	8	73	28	15.3	2.6	8.4	8.1	41	19.1	I=ECO50 DIE.UL107	2	26mm
L 088A	2	3/8	1	BROWN	8	78	28	15.3	2.6	10.5	9.7	46	25.4			26mm
L 088B	2	1/4	5/8	BROWN	8	64	28	15.3	2.6	6.4	7.1	32	15.9			26mm
L 088C	2	1/4	3/4	BROWN		67	28	15.3	2.6	6.4	7.1	35	19.1			26mm
L 089	2	5/16	7/8	BROWN	8	73	28	15.3	2.6	8.4	8.1	41	22.2			26mm
L 090	2	1/2	1 3/4	BROWN	8	108	28	20.5	2.5	13	15.7	76	44.5			26mm
L 091	1	1/4	5/8	GREEN	9.1	65	28	17.1	2.7	6.4	7.1	32	15.9	I=ECO50 DIE.UL119	2	26mm
L 091A	1	3/8	1	GREEN	9.1	78	28	17.1	2.7	10.5	9.7	46	25.4			26mm
L 091B	1	1/4	3/4	GREEN	9.1	68	28	17.1	2.7	6.4	7.1	35	19.1			26mm
L 092	1	3/8	7/8	GREEN	9.1	74.5	28	17.1	2.7	8.4	8.1	41	22.2			26mm
L 093	1	1/2	1 3/4	GREEN	9.1	109	28	19	2.5	13	15.7	76	44.5			26mm
L 094	1/0	5/16	7/8	PINK	9.9	76.5	30.5	18.9	3.2	8.4	8.1	41	22.2	I=ECO50 DIE.UL132	2	28mm
L 095	1/0	3/8	1	PINK	9.9	81.5	30.5	18.9	3.2	10.5	9.7	46	25.4			28mm
L 096	1/0	1/2	1 3/4	PINK	9.9	117.7	30.5	18.9	3.1	13	15.7	76	44.5			28mm
L 097	2/0	3/8	1	BLACK	11.2	87	35	20.7	3	10.5	9.7	46	25.4	I=ECO50 DIE.UL143	2	33mm
L 097A	2/0	1/4	3/4	BLACK	11.2	76	35	20.7	3	6.4	7.1	35	19.1			33mm
L 098	2/0	1/2	1 3/4	BLACK	11.2	117	35	20.7	3	13	15.7	76	44.5			33mm
L 099	3/0	5/16	1	ORANGE	12.5	89	35	22.9	3.2	8.4	8.1	46	25.4	I=ECO50 DIE.UL158	2	33mm
L 099A	3/0	3/8	1	ORANGE	12.5	89	35	22.9	3.2	10.5	9.7	46	25.4			33mm
L 100	3/0	3/8	1 3/4	ORANGE	12.5	118	35	22.9	3.2	10.5	9.7	76	44.5			33mm
L 100A	3/0	1/2	1 3/4	ORANGE	12.5	118	35	22.9	3.2	13	15.7	76	44.5			33mm
L 101	4/0	3/8	1	PURPLE	13.9	90	36	25.4	3.4	10.5	9.7	46	25.4	I=ECO50 DIE.UL175	2	34mm
L 102	4/0	1/2	1 3/4	PURPLE	13.9	120	36	25.4	3.4	13	15.7	76	44.5			34mm
L 103	250	3/8	1	YELLOW	15.1	96	41	27.7	3.8	10.5	9.7	46	25.4	I=ECO50 DIE.UL191	3	39mm
L 104	250	1/2	1 3/4	YELLOW	15.1	126	41	27.7	3.8	13	15.7	76	44.5			39mm
L 105	300	1/2	1 3/4	WHITE	16.7	135	50	30.2	3.8	13	15.7	76	44.5	I=REC-5510 DIE.UL207	3	48mm
L 106	350	1/2	1 3/4	RED	17.8	137	50	32.4	4.2	13	15.7	76	44.5	I=REC-5510 DIE.UL222	3	48mm
L 106A	350	3/8	1	RED	17.8	107	50	32.4	4.2	10.5	9.7	46	25.4			48mm
L 107	400	1/2	1 3/4	BLUE	19.4	139	50	35.2	4.5	13	15.7	76	44.5	I=REC-5510 DIE.UL241	3	48mm
L 108	500	1/2	1 3/4	BROWN	21.3	146	57	39.1	5.5	13	15.7	76	44.5	I=REC-5510 DIE.UL270	3	55mm
L 108A	500	3/8	1	BROWN	21.3	116	57	39.1	5.5	10.5	9.7	46	25.4			55mm
L 109	600	1/2	1 3/4	GREEN	23.5	147	57	43.6	6.4	13	15.7	76	44.5	I=REC-5510 DIE.UL302	3	55mm
L 109A	600	3/8	1	GREEN	23.5	117	57	43.6	6.4	10.5	9.7	46	25.4			55mm
L 110	750	1/2	1 3/4	BLACK	26.5	160	67	48.3	6.8	13	15.7	76	44.5	I=REC-5510 DIE.UL333	3	65mm
L 110A	750	3/8	1	BLACK	26.5	130	67	48.3	6.8	10.5	9.7	46	25.4			65mm

Edit Template

PART NO COPPER FINISH	PART NO TIN PLATED	CABLE	STUD	d1	j	a	c1 + c2	b	e	TOOL & DIE REFERENCE	NO. OF CRIMPS	STRIP LENGTH
L 301	L 301T	8	1/4"	4.72	32	11.58	17.15	13.97	6.4	M=MH-14	2	10mm
L 301A	L 301AT	8	10	4.72	32	11.58	17.15	13.97	5.31			10mm
L 302	L 302T	8	5/16"	4.72	32	11.58	17.15	13.97	8.41			10mm
L 303	L 303T	8	3/8"	4.72	35.18	14.48	17.15	13.97	10.49			10mm
L 304	L 304	8	1/2"	4.72	42.55	16.5	20.62	13.97	13			10mm
L 305	L 305T	6	1/4"	5.89	32.64	13.72	17.78	13.97	6.4	M=MH-14	1	10mm
L 305A	L 305AT	6	10	5.89	32.64	13.72	17.78	13.97	5.31			10mm
L 306	L 306T	6	5/16"	5.89	32.64	13.72	17.78	13.97	8.41			10mm
L 307	L 307T	6	3/8"	5.89	32.64	13.72	17.78	13.97	10.49			10mm
L 308	L 308T	6	1/2"	5.89	42.55	16.5	20.62	13.97	13			10mm
L 309	L 309T	4	1/4"	7.14	40.64	13.72	20.32	14.73	6.4	I=ECO50 DIE.UL904	1	12mm
L 309A	L 309AT	4	10	7.14	40.64	13.72	20.32	14.73	5.31			12mm
L 310	L 310T	4	5/16"	7.14	40.64	13.72	20.32	14.73	8.41			12mm
L 311	L 311T	4	3/8"	7.14	40.64	14.48	20.32	14.73	10.49			12mm
L 312	L 312T	4	1/2"	7.14	40.64	16.5	20.32	14.73	13			12mm
L 313	L 313T	2	1/4"	8.43	45.4	16.51	19.61	17.5	6.4	I=ECO50 DIE.UL106	1	15mm
L 314	L 314T	2	5/16"	8.43	45.4	16.51	19.61	17.5	8.41			15mm
L 315	L 315T	2	3/8"	8.43	45.4	16.51	19.61	17.5	10.49			15mm
L 316	L 316T	2	1/2"	8.43	45.4	16.51	19.61	17.5	13			15mm
L 317	L 317T	1	1/4"	8.94	46	16.7	17.53	18	6.4	I=ECO50 DIE.UL111	1	16mm
L 318	L 318T	1	5/16"	8.94	46	16.7	17.53	18	8.41			16mm
L 319	L 319T	1	3/8"	8.94	46	16.7	17.53	18	10.49			16mm
L 320	L 320T	1	1/2"	8.94	46	16.7	17.53	18	13			16mm
L 321	L 321T	1/0	1/4"	10.19	49.5	18.5	21.34	19.3	6.4	I=ECO50 DIE.UL126	1	18mm
L 322	L 322T	1/0	5/16"	10.19	49.5	18.5	21.34	19.3	8.41			18mm
L 323	L 323T	1/0	3/8"	10.19	49.5	18.5	21.34	19.3	10.49			18mm
L 324	L 324T	1/0	1/2"	10.19	49.5	18.5	21.34	19.3	13			18mm
L 325	L 325T	2/0	1/4"	11.58	57	20.83	24.38	21	6.4	I=ECO50 DIE.UL142	1	19mm
L 326	L 326T	2/0	5/16"	11.58	57	20.83	24.38	21	8.41			19mm
L 327	CE 327T	2/0	3/8"	11.58	57	20.83	24.38	21	10.49			19mm
L 328	CE 328T	2/0	1/2"	11.58	57	20.83	24.38	21	13			19mm
L 329	CE 329T	3/0	1/4"	12.93	59	22.96	25.04	21.46	6.4	I=ECO50 DIE.UL156	1	19mm
L 330	CE 330T	3/0	1/2"	12.93	59	22.96	25.04	21.46	13			19mm
L 331	CE 331T	4/0	3/8"	14.94	66.29	26.31	28.4	23.11	10.49	I=ECO50 DIE.UL176	2	21mm
L 332	CE 332T	4/0	1/2"	14.94	66.29	26.31	28.4	23.11	13			21mm

Edit Template

CAT NO.	WIRE	STUD	d1	j	a	c1 + c2	b	e	MARKING INFO	TOOL & DIE REFERENCE	NO. OF CRIMPS	STRIP LENGTH
L 801HD	8	1/4	4.7	28.5	11.99	14	10.01	6.4	8 MH14-RED	M=MH-14	1	8mm
L 802HD	8	5/16	4.7	35	15.01	20	10.01	8.4	8 MH14-RED			8mm
L 803HD	8	3/8	4.7	38.99	16.99	24	10.01	10.5	8 MH14-RED			8mm
L 804HD	8	1/2	4.7	42.01	19	26.01	10.01	13	8 MH14-RED			8mm
L 811HD	6	1/4	5.41	33.25	11.99	13.74	13	6.4	6 UL851-BU			11mm
L 812HD	6	5/16	5.41	37.49	15.01	18.03	13	8.4	6 UL851-BU	I=ECO50 DIE.UL851	1	11mm
L 813HD	6	3/8	5.41	41.5	16.99	22	13	10.5	6 UL851-BU			11mm
L 814HD	6	1/2	5.41	44.98	19	24.99	13	13	6 UL851-BU			11mm
L 821HD	4	1/4	6.96	37.49	14	15.01	15.01	6.4	4 UL100-GREY		1	14mm
L 822HD	4	5/16	6.96	42.01	18	20	15.01	8.4	4 UL100-GREY	I=ECO50 DIE.UL100		14mm
L 823HD	4	3/8	6.96	46	18	23.98	15.01	10.5	4 UL100-GREY			14mm
L 824HD	4	1/2	6.96	48.01	19	26.01	15.01	13	4 UL100-GREY			14mm
L 831HD	2	1/4	9.88	47.02	20	20	20	6.4	1UL140-PINK			18mm
L 832HD	2	5/16	9.88	47.02	20	20	20	8.4	1UL140-PINK	I=ECO50 DIE UL140	1	18mm
L 833HD	2	3/8	9.88	51	19.99	24	20	10.5	1UL140-PINK			18mm
L 834HD	2	1/2	9.88	56.01	23.01	26.01	20	13	1UL140-PINK			18mm
L 851HD	1/0	1/4	11.38	50.01	22	20	20	6.4	1/0 UL155-BLK			18mm
L 852HD	1/0	5/16	11.38	50.01	22	20	20	8.4	1/0 UL155-BLK	I=ECO50 DIE UL155	1	18mm
L 853HD	1/0	3/8	11.38	54	22	24	20	10.5	1/0 UL155-BLK			18mm
L 854HD	1/0	1/2	11.38	58.01	23.01	26.01	20	13	1/0 UL155-BLK			18mm
L 862HD	2/0	5/16	11.94	52.4	23.01	20	21.01	8.4	2/0 UL165-ORG			20mm
L 863HD	2/0	3/8	11.94	55.01	23.01	24	21.01	10.5	2/0 UL165-ORG	I=ECO50 DIE UL165	1	20mm
L 864HD	2/0	1/2	11.94	59	23.01	26.01	21.01	13	2/0 UL165-ORG			20mm
L 873HD	3/0	3/8	13.39	59.99	26.01	24	24.99	10.5	3/0 UL180-PUR			23mm
L 874HD	3/0	1/2	13.39	62	26.01	26.01	24.99	13	3/0 UL180-PUR	I=ECO50 DIE UL180	2	23mm
L 883HD	4/0	3/8	15.06	65	27.99	27.99	26.01	10.5	4/0 UL195-YEL			24mm
L 884HD	4/0	1/2	15.06	65	27.99	27.99	26.01	13	4/0 UL195-YEL	I=ECO50 DIE UL195	2	24mm

Edit Template

CAT. NO.	WIRE RANGE	COLOUR CODE	d1	d3	j	TOOL RECOMMENDED DIE REFERENCE	NUMBER OF CRIMPS	STRIP LENGTH
L 111	8	RED	4.4	6.9	22.9	M=MH14	2	10mm
L 112	6	BLUE	5.2	7.5	25.4	M=MH14	2	12mm
L 113	4	GREY	6.4	8.7	25.4	M=MH14	2	12mm
L 114	2	BROWN	8	10.7	31.8	I=ECO50 DIE.UL 107	3	15mm
L 115	1	GREEN	9.1	11.9	45.7	I=ECO50 DIE.UL 119	3	21mm
L 116	1	PINK	9.9	13.2	40.6	I=ECO50 DIE.UL 132	3	18mm
L 117	2/0	BLACK	11.2	14.3	44.5	I=ECO50 DIE.UL 143	3	20mm
L 118	3/0	ORANGE	12.5	15.8	44.5	I=ECO50 DIE.UL 158	3	20mm
L 119	4/0	PURPLE	13.9	17.5	48.3	I=ECO50 DIE.UL 175	3	23mm
L 120	250	YELLOW	15.1	19.1	50.8	I=ECO50 DIE.UL 191	3	24mm
L 121	300	WHITE	16.7	20.7	53.3	I=ECO50 DIE.UL 207	3	25mm
L 122	350	RED	17.8	22.2	53.3	I=ECO50 DIE.UL 222	3	25mm
L 123	400	BLUE	19.4	24.1	58.4	I=ECO50 DIE.UL 241	3	27mm
L 124	500	BROWN	21.2	27	63.5	I=ECO50 DIE.UL 270	4	30mm
L 125	600	GREEN	23.5	30.2	63.5	I=ECO50 DIE.UL 302	4	30mm
L 126	750	BLACK	26.2	33.3	81.3	I=ECO50 DIE.UL 333	4	40mm
L 127	8	RED	4.4	6.9	44.5	M=MH14	2	20mm
L 128	6	BLUE	5.2	7.5	44.5	M=MH14	2	20mm
L 129	4	GREY	6.4	8.7	44.5	M=MH14	2	20mm
L 130	2	BROWN	8	10.7	48.3	I=ECO50 DIE.UL 107	3	22mm
L 131	1	GREEN	9.1	11.9	55.9	I=ECO50 DIE.UL 119	3	26mm
L 132	1/0	PINK	9.9	13.2	55.9	I=ECO50 DIE.UL 132	3	26mm
L 133	2/0	BLACK	11.2	14.3	57.2	I=ECO50 DIE.UL 143	3	28mm
L 134	3/0	ORANGE	12.5	15.8	57.2	I=ECO50 DIE.UL 158	3	28mm
L 135	4/0	PURPLE	13.9	17.5	69.9	I=ECO50 DIE.UL 175	3	33mm
L 136	250	YELLOW	15.1	19.1	82.6	I=ECO50 DIE.UL 191	3	40mm
L 137	300	WHITE	16.7	20.7	89	I=ECO50 DIE.UL 207	3	43mm
L 138	350	RED	17.8	22.2	95.3	I=ECO50 DIE.UL 222	3	46mm
L 139	400	BLUE	19.4	24.1	95.3	I=ECO50 DIE.UL 241	3	46mm
L 140	500	BROWN	21.2	27	108	I=ECO50 DIE.UL 270	4	52mm
L 141	600	GREEN	23.5	30.2	114.3	I=ECO50 DIE.UL 302	4	55mm
L 142	750	BLACK	26.2	33.3	120.7	I=ECO50 DIE.UL 333	4	57mm

Edit Template

PART NO.	CABLE SIZE	d1	d3	j	MARKING INFORMATION	TOOL RECOMMENDED DIE REFERENCE	NO. OF CRIMPS	STRIP LENGTH
L 900	8	4.7	7.01	30	8 MH14 -RED	M=MH14	3	13mm
L 910	6	5.41	8.51	35	6 MH14-BLU	M=MH14	3	15mm
L 920	4	6.96	10	40	4 UL 100-GREY	I=ECO50 DIE.UL100	4	18mm
L 940	1	9.88	14	50	1-UL 140-PINK	I=ECO50 DIE.UL140	4	24mm
L 950	1/0	11.36	15.5	50	2/0 UL155-BLK	I=ECO50 DIE.UL155	4	24mm
L 960	2/0	11.95	16.61	55	2/0 UL166-ORG	I=ECO50 DIE.UL166	4	26mm
L 970	3/0	13.39	18	60	3/0 UL180-PUR	I=ECO50 DIE.UL180	4	28mm
L 980	4/0	15.06	19.51	65	4/0 UL194-YEL	I=ECO50 DIE.UL195	4	32mm

Edit Template

PART NO COPPER FINISH	PART NO TIN FINISH	WIRE RANGE	DIMENSIONS IN INCHES	TOOL RECOMMENDED DIE REFERENCE	NO. OF CRIMPS	STRIP LENGTH
CE 333	CE 333 T	8	4.7244	6.35	27.94	M=MH14
CE 334	CE 334 T	6	5.5928	7.925	29.21	M=MH14
CE 335	CE 335 T	4	7.1374	9.042	30.988	M=MH14
CE 336	CE 336 T	2	8.4328	10.668	34.036	IZ=ECO50 DIE.UL106
CE 337	CE 337 T	1	8.9408	11.176	34.036	IZ=ECO50 DIE.UL111
CE 338	CE 338 T	1/0	10.1854	12.649	39.624	IZ=ECO50 DIE.UL126
CE 339	CE 339 T	2/0	11.5824	14.224	45.974	IZ=ECO50 DIE.UL142
CE 340	CE 340 T	3/0	12.9286	15.621	48.26	IZ=ECO50 DIE.UL156
CE 341	CE 341 T	4/0	14.9352	17.628	62.484	IZ=ECO50 DIE.UL176

Edit Template

CAT NO.	CABLE SIZE	e	b	a	d1	j	TOOL RECOMMENDED DIE REFERENCE	NUMBER OF CRIMPS	STRIP LENGTH
LDL 6 - 5	8	M 5	10	8.5	3.8	30.5	M=MH14	1	8mm
LDL 6 - 6	8	M 6	10	8.5	3.8	31.5
LDL 6 - 8	8	M 8	10	13	3.8	34
LDL 10 - 5	6	M 5	10	9	4.5	34	M=MH14	1	8mm
LDL 10 - 6	6	M 6	10	9	4.5	34.5
LDL 10 - 8	6	M 8	10	13	4.5	37
LDL 16 - 6	6	M 6	20	13	5.5	43.5	M=MH14	1	18mm
LDL 16 - 8	6	M 8	20	13	5.5	46
LDL 16-10	6	M10	20	17	5.5	48
LDL 16-12	6	M12	20	18	5.5	49
LDL 25 - 6	4	M 6	20	14	7	45.5	I=ECO50 DIE.UL100	1	18mm
LDL 25 - 8	4	M 8	20	16	7	48
LDL 25-10	4	M10	20	17	7	50
LDL 25-12	4	M12	20	19	7	51
LDL 35 - 6	2	M 6	20	17	8.2	49.5	I=ECO50 DIE.UL125	1	18mm
LDL 35 - 8	2	M 8	20	17	8.2	52
LDL 35-10	2	M10	20	19	8.2	54
LDL 35-12	2	M12	20	21	8.2	55
LDL 35-14	2	M14	20	21	8.2	56.5
LDL 50 - 8	1	M 8	28	20	10	62	I=ECO50 DIE.UL145	2	26mm
LDL 50-10	1	M10	28	22	10	64
LDL 50-12	1	M12	28	24	10	65
LDL 50-14	1	M14	28	24	10	66.5
LDL 50-16	1	M16	28	28	10	68
LDL 70 - 8	2/0	M 8	28	24	11.5	65	I=ECO50 DIE.UL165	2	26mm
LDL 70-10	2/0	M10	28	24	11.5	67
LDL 70-12	2/0	M12	28	24	11.5	68
LDL 70-14	2/0	M14	28	24	11.5	69.5
LDL 70-16	2/0	M16	28	30	11.5	71
LDL 95 - 8	3/0	M 8	35	28	13.5	77	I=ECO50 DIE.UL190	2	33mm
LDL 95-10	3/0	M10	35	28	13.5	77
LDL 95-12	3/0	M12	35	28	13.5	78
LDL 95-14	3/0	M14	35	28	13.5	79.5
LDL 95-16	3/0	M16	35	32	13.5	81
LDL 120 - 10	250 MCM	M10	35	32	15.5	85	I=ECO50 DIE.UL210	2	33mm
LDL 120 - 12	250 MCM	M12	35	32	15.5	86
LDL 120 - 14	250 MCM	M14	35	32	15.5	88
LDL 120 - 16	250 MCM	M16	35	34	15.5	89
LDL 120 - 20	250 MCM	M20	35	38	15.5	91
LDL 150 - 10	300 MCM	M10	35	34	17	93	I=REC-5510 DIE.UL235	2	33mm
LDL 150 - 12	300 MCM	M12	35	34	17	94
LDL 150 - 14	300 MCM	M14	35	34	17	97
LDL 150 - 16	300 MCM	M16	35	34	17	97
LDL 150 - 20	300 MCM	M20	35	40	17	99
LDL 185 - 10	400 MCM	M10	40	37	19	97	I=REC-5510 DIE.UL255	2	38mm
LDL 185 - 12	400 MCM	M12	40	37	19	98
LDL 185 - 14	400 MCM	M14	40	37	19	101
LDL 185 - 16	400 MCM	M16	40	37	19	101
LDL 185 - 20	400 MCM	M20	40	40	19	103
LDL 240 - 12	500 MCM	M12	40	42	21.5	108	I=REC-5510 DIE.UL290	2	38mm
LDL 240 - 14	500 MCM	M14	40	42	21.5	111
LDL 240 - 16	500 MCM	M16	40	42	21.5	111
LDL 240 - 20	500 MCM	M20	40	45	21.5	113
LDL 300 - 14	600 MCM	M14	50	48	24.5	119	I=REC-5510 DIE.UL320	2	48mm
LDL 300 - 16	600 MCM	M16	50	48	24.5	119
LDL 300 - 20	600 MCM	M20	50	48	24.5	122
LDL 400 - 14	750 MCM	M14	70	55	27.5	140	C=CRIMP-FT-1000 DIE H385	3	68mm
LDL 400 - 16	750 MCM	M16	70	55	27.5	140
LDL 400 - 20	750 MCM	M20	70	55	27.5	140

Edit Template

CAT NO	Cable AWG/MCM	e	b	a	d1	j	TOOL RECOMMENDED DIE REFERENCE	NO. OF CRIMPS	STRIP LENGTH

Edit Template

CAT. NO.	CABLE AWG/MCM	d1	d3	j	TOOL RECOMMENDED DIE REFERENCE	NO. OF CRIMPS	STRIP LENGTH
LLC 1.5 - 22	16	1.8	3.7	22	M=MH14	4	8mm
LLC 2.5 - 22	14	2.4	4	22	M=MH14	4	8mm
LLC 4 - 22	12	3.1	4.8	22	M=MH14	4	8mm
LLC 6 - 22	10	3.8	5.5	22	M=MH14	4	8mm
LLC 10 - 22	6	4.7	7.1	22	M=MH14	4	8mm
LDB 16 - 50	6	5.5	8.5	50	M=MH14	4	20mm
LLC 16 - 44	6	5.5	7.9	44	M=MH14	4	18mm
LDB 25 - 50	4	7	10	50	I=ECO50 DIE.UL100	4	20mm
LLC 25 - 48	4	7.1	9.5	48	I=ECO50 DIE.UL950	4	18mm
LDB 35 - 50	2	8.2	12.5	50	I=ECO50 DIE.UL125	4	20mm
LLC 35 - 48	2	8.2	11.2	48	I=ECO50 DIE.UL112	4	18mm
LDB 50 - 56	1/0	10	14.5	56	I=ECO50 DIE.UL145	4	22mm
LLC 50 - 48	1/0	9.5	12.8	48	I=ECO50 DIE.UL128	4	18mm
LDB 70 - 56	2/0	11.5	16.5	56	I=ECO50 DIE.UL165	4	22mm
LLC 70 - 52	2/0	11.2	14.7	52	I=ECO50 DIE.UL147	4	20mm
LDB 95 - 70	3/0	13.5	19	70	I=ECO50 DIE.UL190	4	30mm
LLC 95 - 54	3/0	13.4	17.4	54	I=ECO50 DIE.UL174	4	22mm
LDB 120 - 70	4/0	15.5	21	70	I=REC-5510 DIE.UL210	4	30mm
LLC 120 - 66	4/0	15.6	20.6	66	I=REC-5510 DIE.UL206	4	28mm
LDB 150 - 80	300 MCM	17	23.5	80	I=REC-5510 DIE.UL235	4	35mm
LLC 150 - 66	300 MCM	16.7	22.5	66	I=REC-5510 DIE.UL225	4	28mm
LDB 185 - 85	350 MCM	19	25.5	85	I=REC-5510 DIE.UL255	4	37mm
LLC 185 - 66	350 MCM	18.4	24.2	66	I=REC-5510 DIE.UL242	4	28mm
LDB 240 - 90	500 MCM	21.5	29	90	I=REC-5510 DIE.UL290	4	42mm
LLC 240 - 91	500 MCM	21.2	28.2	91	I=REC-5510 DIE.UL282	4	42mm
LDB 300 - 100	600 MCM	24.5	32	100	I=REC-5510 DIE.UL320	4	45mm
LLC 300 - 91	600 MCM	23.5	31.3	91	I=REC-5510 DIE.UL313	4	42mm
LDB 400 - 150	750 MCM	27.5	38.5	150	C=CRIMP-FT-1000-DIE-H385	4	70mm
LLC 400 - 91	750 MCM	26.8	34.8	91	C=CRIMP-FT-1000-DIE-H348	4	42mm

Edit Template

Quick Links

Call us on

Navigation

Mail us on
